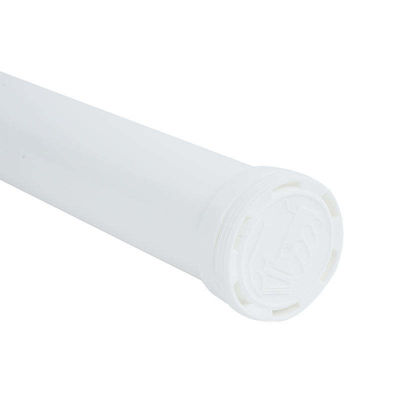

Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant

  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
Miejsce pochodzenia Szanghaj, Chiny
Nazwa handlowa JND
Orzecznictwo FSSC 22000;ISO 9001;
Numer modelu VCB29T99
Minimalne zamówienie 50000 jednostek
Cena $0.07/unit without printing
Szczegóły pakowania Torba PE +karton papierowy Rozmiar: 595*400*350 mm dla rurki 550pcs; 390*300*475 mm dla czapki 1500p
Czas dostawy 7-15 dni
Możliwość Supply 27000 jednostek dziennie

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Zastosowanie Tabletka z witamin, minerałów, suplementów Materiał Boday Pp
Materiał czapki Pe Typ plastikowy Pp
Drukuj kolor 6 kolorów Max OEM Przyjąć
Druk Drukowanie gorącego transferu lub instalacja Tworzywo spożywczy PP
MOQ 50000 jednostek Odlewanie Formowanie wtryskowe
Nazwa produktu PP PP -Tabletowa rurka PP z pokrywką Czapka spiralna czapka
Kolor Dostosowane Kształt Cylinder
Zostaw wiadomość
opis produktu

※Product Specification


Such tube contains a set of individually wrapped effervescent tablets, making it easy to carry and use on-the-go.

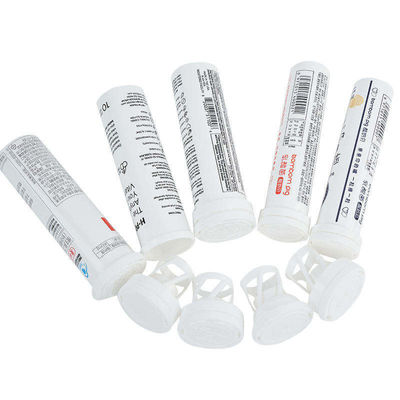

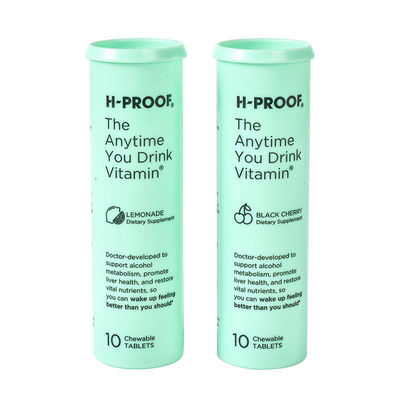

The effervescent tablet packaging from JND can be printed by hot transfer processing to compete with the traditional label more uniquely, more attractively so as to enhance the brand value.

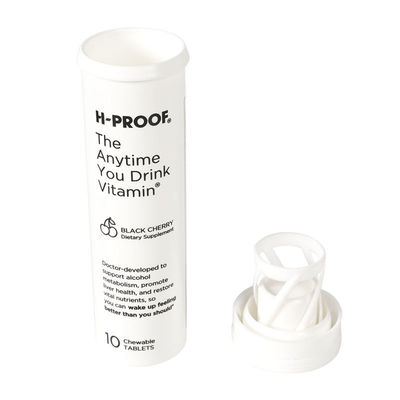

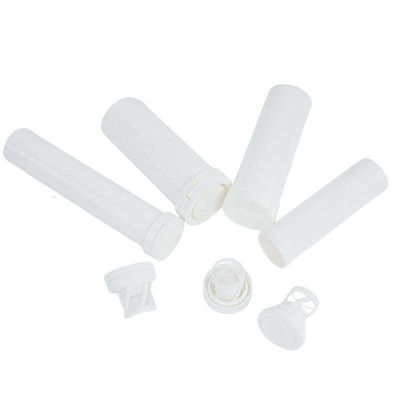

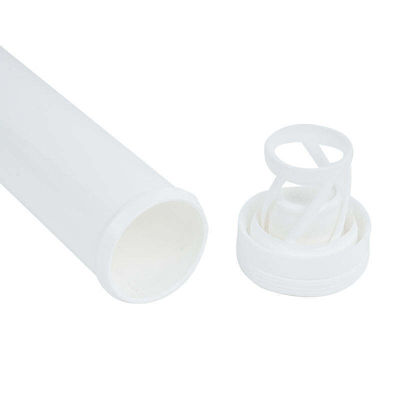

The cap of effervescent tube is cleverly designed, which is composed of desiccant, spiral spring and anti-theft ring. It plays different roles in protecting the safety and effectiveness of tablets.


1. Product Size

JND Code Tube Height(mm) Neck Outside(mm) Neck Inside(mm) Cap Diameter(mm) Desiccant Weight(g)
VCB29T99 99 29 27 34 2.1





2. Technical Specification





Type No. Item Specifications Inspection method AQL Type

Molding



1



 Appearance
  • Smooth surface, no obvious impurities, color particles and black spots
  • Under normal distance 30cm, normal light, no black spots, impurities
  • Uniform color, no mottled
 Visual Light
  2 Peculiar smell No peculiar smell different from the material itself. Complete structure injection mold in accordance with the standard sample Smell Main
  3 ￠29*99 Diameter 29.0±1.0mm caliper Main
      Height 99.0±1.0mm Height gauge Main
      Wall Thickness 1.0±0.4mm Caliper Main
Function 1 Sealing Property Filling nominal capacity of water into the tube and tighten the cap, then Horizontally placed in the ground without leakage after 4 hours. Visual Main
  2 Drop Property Filling nominal capacity of 20±5℃water into the tube and tighten the cap, then drop at 1.0m height, the bottom hits the cement flat ground, continuously dropping 3 times without rupture. Visual Main
  3 Thermo stability Filling 90 degrees of hot water into tube, and cover the cap, then move to the 60 degrees thermostat. After 30 minutes, observe that the product should not be deformed or ruptured Visual Main
Print 1 Drawing Color, Picture and Words same as standard sample According to standard sample Key
  2 Appearance The appearance of the printed product is clean no soiling and deformity refer to standard sample Visual Light
  3 Peel strength Use 3M600tape, smooth pull up the tape at an angle of 45 degrees no large area peeled off. Tape test Main






3. Storage:





  • Keep in a cool, dry and ventilated place. Not in sunlight, rain, near the heat source, exposed to high temperature, high humidity environment (normal temperature storage, humidity > 65%)
  • Need to pad higher, away from the ground and wall 10cm above. no pressure
